445w 156 Cell Half Cut Monocrystalline Module Solar Panel

Suzhou Jun Hui Import and export trade Co., Ltd.
Contact Now

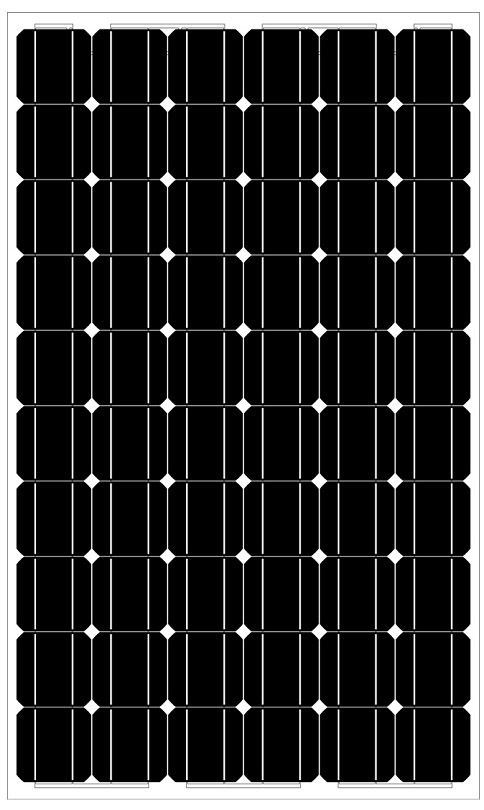

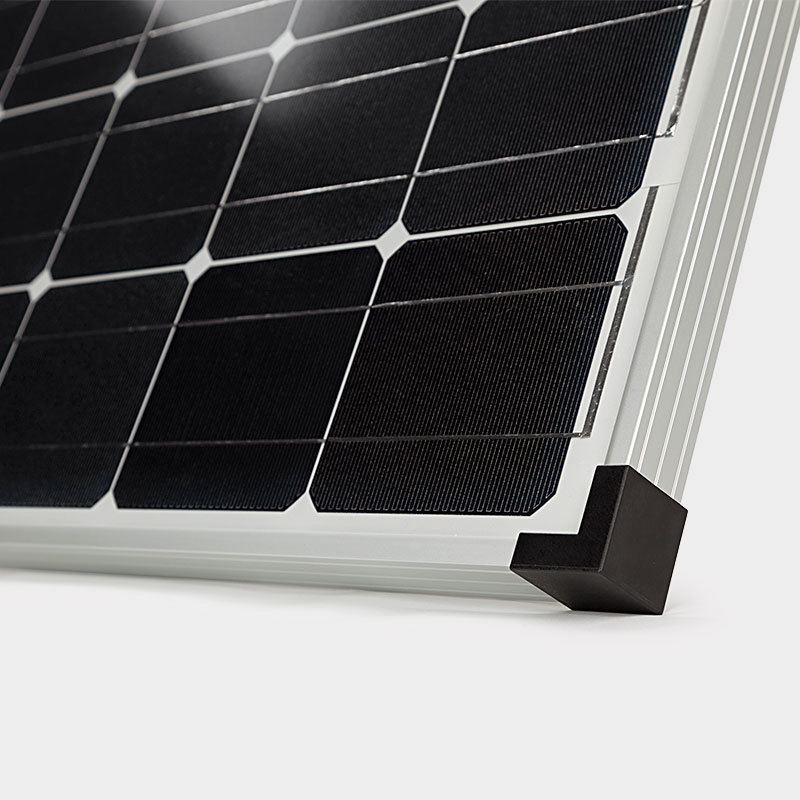

445w 156 Cell Half Cut Monocrystalline Module Solar Panel

Brand Name : Risen

Model Number : 430W-445W

Certification : ISO9001/CE

Place of Origin : China

MOQ : 1

Delivery Time : Shipped in 7 days after payment

Packaging Details : In well protected carton or wooden box with pallets. 26pcs per pallet, 380pcs fill into 20GP, 820pcs fill into 40HQ

Cells : 156

Module Efficiency : 21%

Power Output Range : 430-445Wp

Maximum System Voltage : 1500VDC

Material : Monocrystalline Silicon

Color : Sliver aluminum frame

Contact Now

310watt 280watt 300watt Poly and Mono Solar Module Factory Price

1. High efficiency solar panel;
2. Cerificates: IEC61215 & IEC61730( TUVRheinland); CE, ISO,
3. Warranty:

25 years limited power warranty
10 years limited product warranty

Packing Details :

Packing Wooden Carton
1*20' GP 6Pallets/240pcs
1*40'HQ 14Pallets/644pcs

Model
DSP250M-60

Ratin power (Pm)

250W

Cells

Mono crystal 156x156 mm2

Number of cells
60(6x10) series connected

Size

1640(L) x 980(W) x40(H) mm

Weight
20 Kg

Typical application

24V DC

Maximum voltage

1000V DC

Operating temperature

45° C

Hail diameter @ 80Km/h

Up to 25 mm

Continuous wind pressure

Up to 24 m/s

Efficiency of cell

≥ 14.92%

Tolerance

0-+3%

Rated current (Im)

8.33A

Rated voltage(Vm)

30V

Short circuit Current(Isc)
8.63A

Open circuit Voltage(Voc)
37.5V


445w 156 Cell Half Cut Monocrystalline Module Solar Panel
445w 156 Cell Half Cut Monocrystalline Module Solar Panel
445w 156 Cell Half Cut Monocrystalline Module Solar Panel


FAQ


Q1: What is your MOQ?
A: We have no MOQ, 1pc sample order is also ok for us,but best Cost performance is by big quantity order.

Q2: Do you have any experience with big bidding projects?
A: Yes, we have rich experience on the big bidding projects, and have helped our customers win many such bidding projects. Our sale engineer are very familiar with the bidding procedure and can provide detailed information as required in time.

Q3: Do you accept OEM?
A: yes, we can do the OEM for you, and we are the OEM supplier of many famous brands from Europe, USA, Asia,Middle East and Africa etc.

Q4: What payment terms do you accept?
A: We accept TT, LC,Cash, and Western Union etc.

Q5: What about the production time?
A: Samples can be delivery at once
500sets above normal need 10 to 15 days, if no goods in storage.
2000sets above normal need 15 to 20 days, if no goods in storage.

Q6: What else materials should we prepare before installation after buying your solar panels?
A: We can provide all system components and only small civil work is needed

Q7: What is your Warranty Policy?
A: We offer 20 years warranty for the entire system and can be replaced with new ones for free if quality Issues.
